Maya Train Section 5 South B: Akumal – Paamul

20,7 km
LENGTH
Mexico
LOCATION
€173,5 M
BUDGET
Construction of one of the most complicated sections of the Maya Train dueto the karst nature of the terrain.

Section 5 South B of the Maya Train, with a length of 60 km, was divided into three sub-sections.

Fonatur/GAMI
Client
Construction
Contract type
2023-2024
Construction period
Azvi

Description of works

Construction of sub-section B, comprising 4.6 km of embankment and 41 .4 km of track and catenary.

This section is double track on ballast, electrified far mixed traffic, with the specifications of 17 tonnes per axle and 160 km/h far passengers and 32 tonnes per axle and 100 km/h far freight.

Key figures

67.032
Sleepers
105,000 m³
Concrete
520,000 m³
Formation layer

Main challenges

The project is located in a highly karstic area, where indirect dissolution of calcium carbonate in the limestone has created large underground galleries and caves.

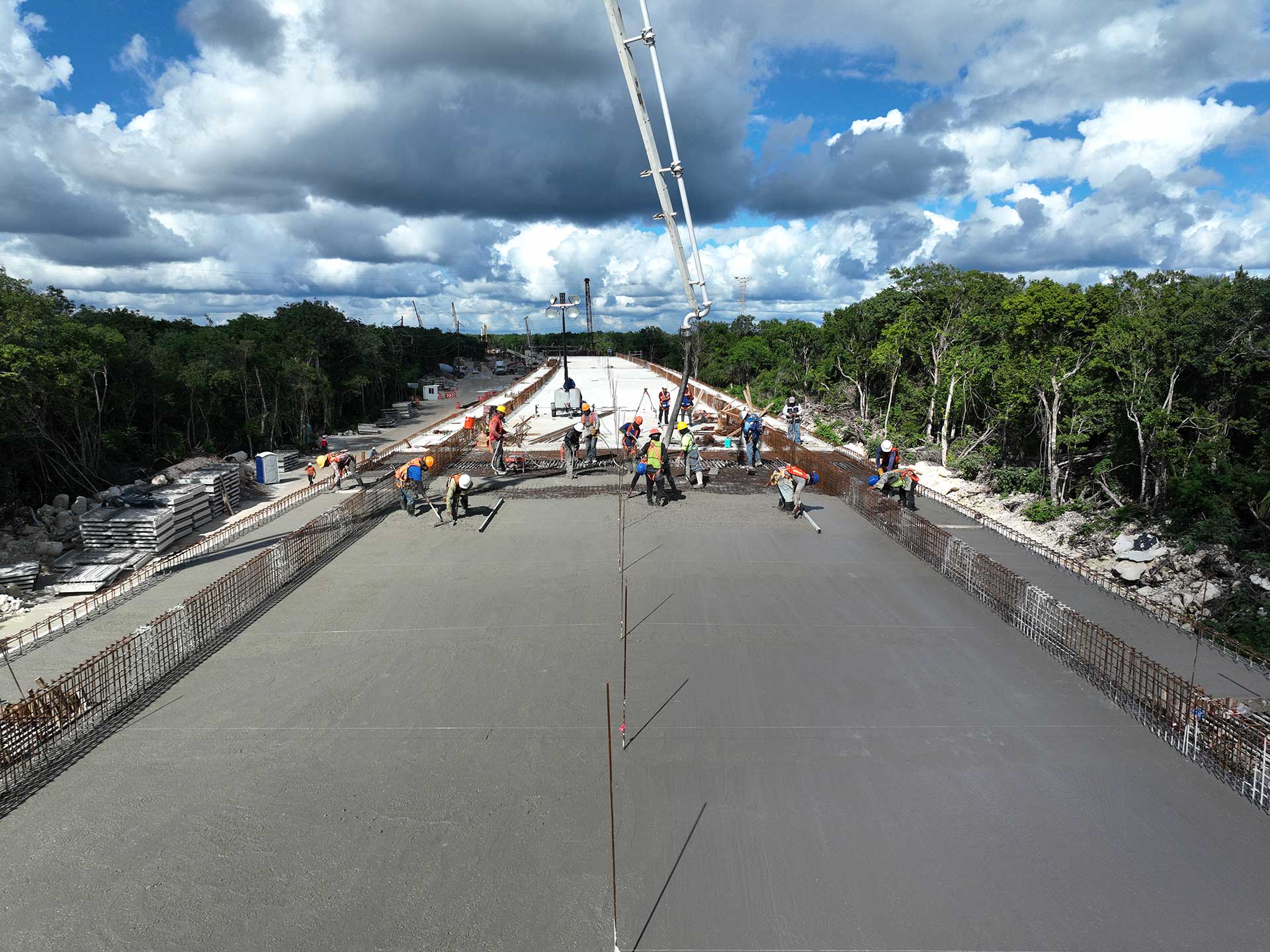

Azvi's technical department collaborated with the engineering department for the design of the embankment slab in the karst terrain.

In general, in the 67.7 km stretch between Playa del Carmen and Tulum, more than 60% of the line will be an elevated viaduct, to protect the karst soil, cenotes, caves and underground rivers in the area.

Azvi
Azvi

Sustainability

The Maya Train project aims to promote the conservation of ecosystems and environmental services, reduce illegal logging and implement measures to promote responsible land use, encourage environmentally friendly agriculture and livestock production, create an economy based on the responsible use of natural resources and promote economic activities that use land and natural resources less intensively.
